Model Number : GM48

Place of Origin : ZHEJIANGNINGBO

MOQ : 1K

Price : The price ranges from 10 to 50 yuan per unit. The specific model requirements vary

Payment Terms : T/T

Supply Ability : 100,000 units per month

Delivery Time : 30work days

Packaging Details : Carton with pallet

Contact Now

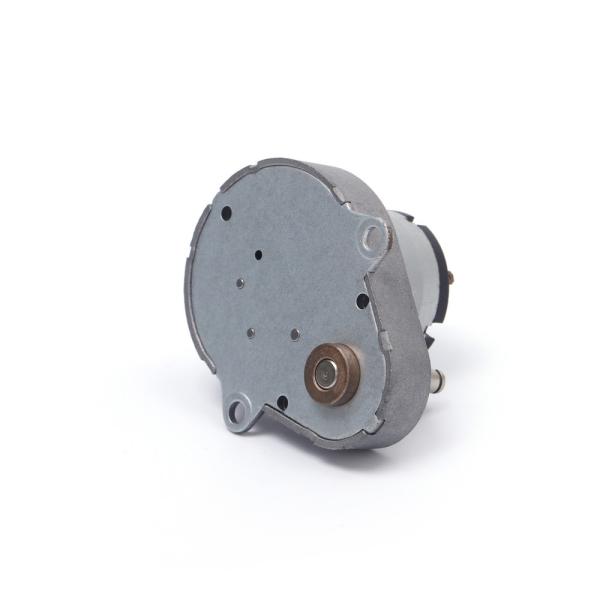

DC GEAR MOTOR GM48

Products' type:	DC geared motor
Model:	GM48
Sort:	Round shape DC geared motor
Typical applications:	Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…





Weight	160g (approx)

MODEL	VOLTAGE	AT NO LOAD		AT MAXIMUM EFFICIENCY				AT STALL
	VOLTAGE	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT
	VDC	RPM	A	RPM	A	mN.m	kg.cm	mN.m	kg.cm	A
GM48453-520	24	11	0.03	8.7	0.12	1264.2	12.900	6232.8	63.600	0.47
Base motor option	RF500,RS520,RS528
Gear ratio option	11, 19.5, 47.3, 189,232, 290, 453.6, 529, 567, 661.5, 1221, 1526.5
Note	output shaft can be changed as customer's request.
Packing detail	Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:18Kg.
